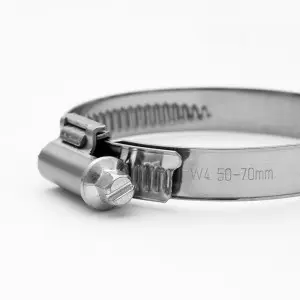

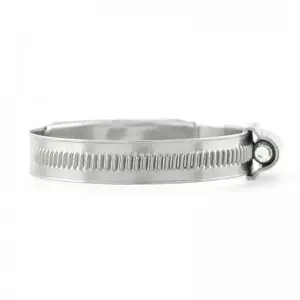

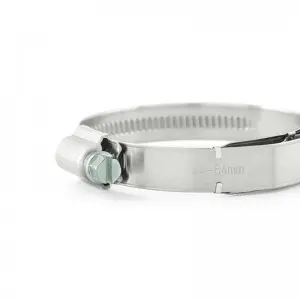

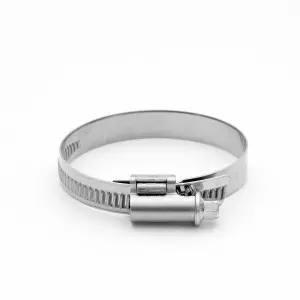

12mm wide stainless steel hose clamp with compensator

Description

Material characteristics

Stainless steel material: Made of high-quality stainless steel, it has excellent corrosion resistance, can resist the erosion of chemicals such as acids and alkalis, and is suitable for various harsh environments. At the same time, stainless steel also has high strength and hardness, which ensures that the hose clamp will not be easily deformed or damaged during use and has a long service life.
Compensator material: The compensator is usually made of rubber or other elastic materials, with good elasticity and flexibility. It can absorb the thermal expansion and contraction and vibration of the pipeline within a certain range, reduce the stress caused by temperature changes and mechanical vibrations in the pipeline, and protect the safe operation of the pipeline and equipment.

Structural characteristics

Width is 12mm: This width design enables the hose clamp to provide sufficient clamping force to ensure that the connection between the hose and the pipeline or equipment is tight and reliable to prevent leakage. At the same time, the width of 12mm is also moderate, does not take up too much space, and is easy to install and use.

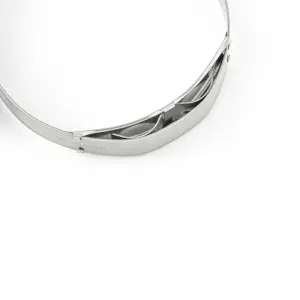

With compensator: The presence of the compensator is an important feature of this product. It can effectively compensate for the displacement and deformation of the pipeline during operation, and avoid the pipeline from being broken or damaged due to stress concentration. In addition, the compensator can also absorb the vibration of the pipeline, reduce noise, and improve the stability and comfort of the pipeline system.

Functional characteristics

Clamping function: The hose clamp is fixed to the hose by bolts or other fastening methods to achieve the clamping of the hose. The size of the clamping force can be controlled by adjusting the tightening degree of the bolts to ensure that the connection between the hose and the pipeline or equipment is tight and reliable.
Compensation function: It can absorb the thermal expansion and contraction and vibration of the pipeline within a certain range, and reduce the stress caused by temperature changes and mechanical vibrations in the pipeline. This helps to protect the safe operation of pipelines and equipment and extend their service life.
Sealing function: Sealing gaskets or other sealing materials are usually used between the hose clamp and the hose to prevent medium leakage. The quality of the sealing performance directly affects the normal operation and safety of the pipeline system. Therefore, when choosing a hose clamp, you need to pay attention to whether its sealing performance is good.

Specification	Diameter Range(mm)	Mounting Torque(Nm)	Material	Surface Finish	Bandwidth(mm）	Thickness(mm)
16-27	16-27	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
19-29	19-29	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
20-32	20-32	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
25-38	25-38	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
25-40	25-40	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
30-45	30-45	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
32-50	32-50	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
38-57	38-57	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
40-60	40-60	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
44-64	44-64	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
50-70	50-70	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
64-76	64-76	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
60-80	60-80	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
70-90	70-90	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
80-100	80-100	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
90-110	90-110	Load torque ≥8Nm	304 stainless steel	Polishing process	12	0.8
