Fixed Diameter Clamp-Seikou Manufacturers
Materials:
Strip: Steel DIN 1.0935
Screws: Steel Grade 8.8
Silver-white Cr3 zinc-plated
Nuts: Steel Grade 6
Silver-white Cr3 zinc-plated
Surface:
Galvanized steel
Corrosion resistance:
72 hours
Salt spray (ASTM B-117)
Description

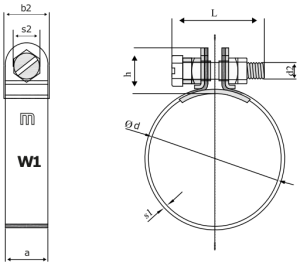

Seikou Fixed Diameter “S” Clamps:
Precise Fit: Designed to ensure the best fit between hose and connector, the clamping range is very small, the diameter of the clamp before and after tightening is very similar, once installed and tightened, it can accurately match the required diameter.
Low Torque Requirement: Only a small amount of tightening force is required to achieve the required torque, which is convenient to operate.
Wide Applicability: It can be used to assemble hoses with metal or plastic connectors, covering industries such as medical machinery manufacturing, automobiles and motorcycles.
Various Size Specifications: Products with a maximum diameter of 120mm and a band width of 20mm are available.
Excellent Material: The clamp band is made of DIN 1.0935 steel, the screws are 8.8 grade steel with silver-white Cr3 zinc plating, the nuts are 6 grade steel with silver-white Cr3 zinc plating, and the surface is galvanized steel with good corrosion resistance, which has been tested for 72 hours in salt spray test (ASTM B-117).
Panduit Fixed Diameter Cable Clamp:
Durable material: Usually made of nylon 6.6, it has good durability and can be used for a long time in a variety of environments.
Strong temperature adaptability: The operating temperature range is wide. Taking Panduit CCH100 – S10 – C as an example, its minimum operating temperature is – 60℃ and the maximum operating temperature is 85℃.
Easy to install: It adopts screw installation and is an integrated design with low insertion force, which is convenient for manual installation, which can significantly reduce installation time and installation costs, and no secondary fasteners are required.
Reliable fixation: With integrated ribs to prevent the harness from rotating, it can firmly clamp the hose.
Various specifications: There are different size specifications to accommodate cables of different diameters, such as CCH100 – S10 – C with a maximum harness diameter of 25.4mm, and CCH56 – S10 – M is suitable for 0.56-inch pipes.
