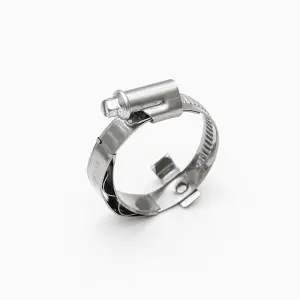

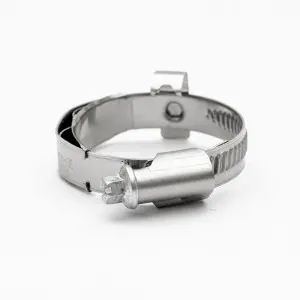

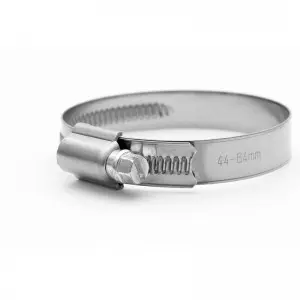

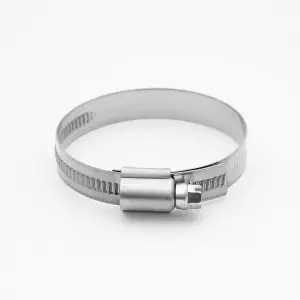

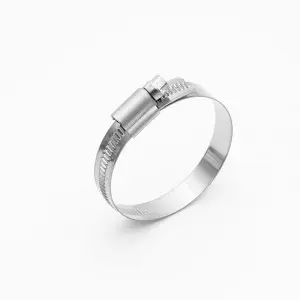

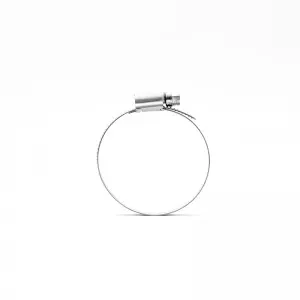

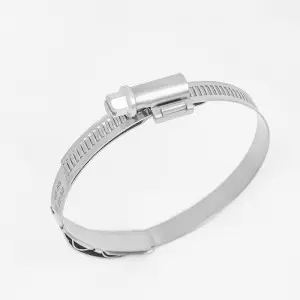

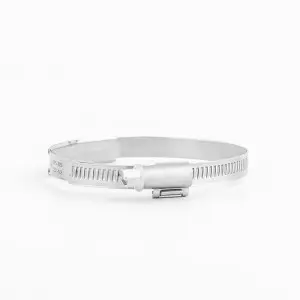

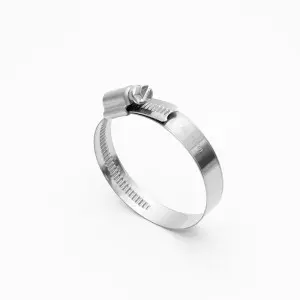

Industrial Grade Stainless Steel 304, 316 German Hose Clamp – Seikou Manufacturer

Material W1 W2 W4 W5
Hoop staps Iron galvanize 200ss/300ss 200ss/300ss 316
Hoop shell Iron galvanize 200ss/300ss 200ss/300ss 316
Screw Iron galvanize Iron galvanize 200ss/300ss 316
Category:

Description

1. Excellent material: 304 and 316 high-quality stainless steel are selected. 304 has good corrosion resistance and strength, and is suitable for most conventional industrial scenarios; 316, on the basis of 304, further improves the tolerance to corrosive media such as acids and alkalis, and can be used stably in highly corrosive environments such as chemical industry. It has excellent anti-oxidation and anti-rust properties and a long service life.
2. German process standards: Strictly follow the German precision manufacturing process, with high dimensional accuracy and tight thread bite to ensure excellent fit with the hose. The surface treatment is delicate and smooth, without burrs, reducing damage to the hose surface, and the installation is convenient and stable.
3. Strong clamping performance: The unique structural design gives it a strong and uniform clamping force, which can firmly fix the hose. Even under harsh working conditions such as high pressure and strong vibration, it can effectively prevent the hose from loosening and falling off, and ensure the sealing and safety of the pipeline system.
4. Wide range of environmental adaptability: Excellent high and low temperature resistance, can work normally in a wide temperature range of -40℃ to 400℃; adapt to complex environments such as humidity, salt spray, oil pollution, etc., and meet the diversified needs of multiple industries such as chemical, food, shipbuilding, and automobile manufacturing.
5. Diverse specifications: Provide a variety of specifications and models, adapt to hoses of different diameters, and meet various pipeline installation requirements. Some models also have a quick adjustment function, which can flexibly adjust the clamping force to improve installation efficiency.

Specification Diameter range (mm) Installation torque(Nm) Material Surface treatment Bandwidth(mm) Thickness(mm)
12-22 12-22 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
16-25 16-25 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
16-27 16-27 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
19-29 19-29 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
20-32 20-32 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
25-38 25-38 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
25-40 25-40 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
30-45 30-45 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
32-50 32-50 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
38-57 38-57 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
40-60 40-60 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
44-64 44-64 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
50-70 50-70 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
64-76 64-76 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
60-80 60-80 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
70-90 70-90 Load torque≥8Nm 304 stainless steel Polishing process 12 0.65
