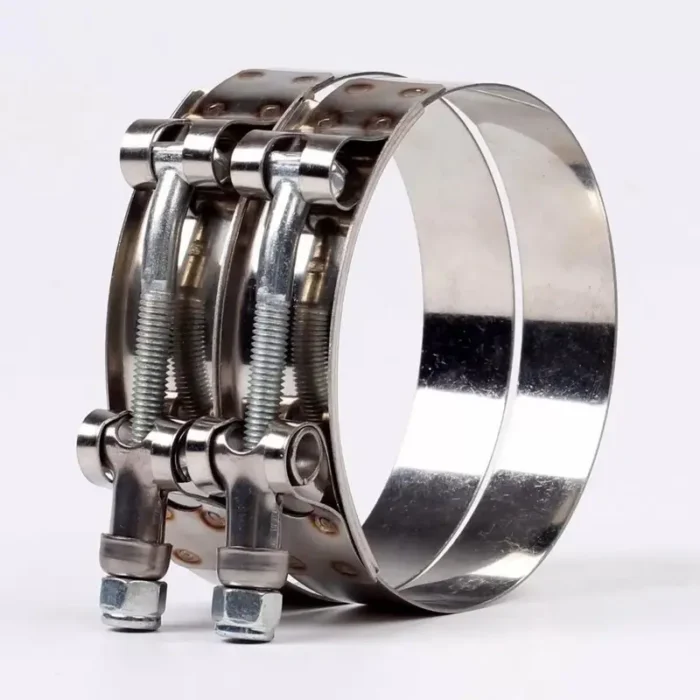

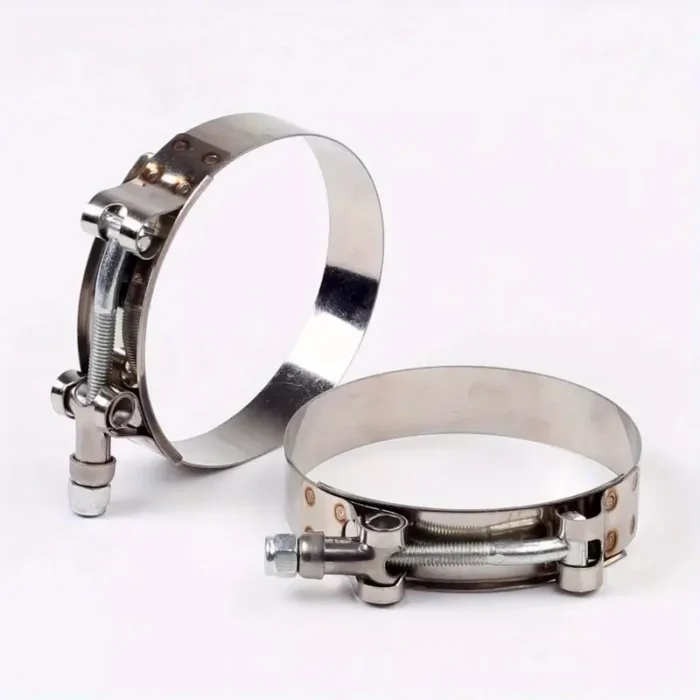

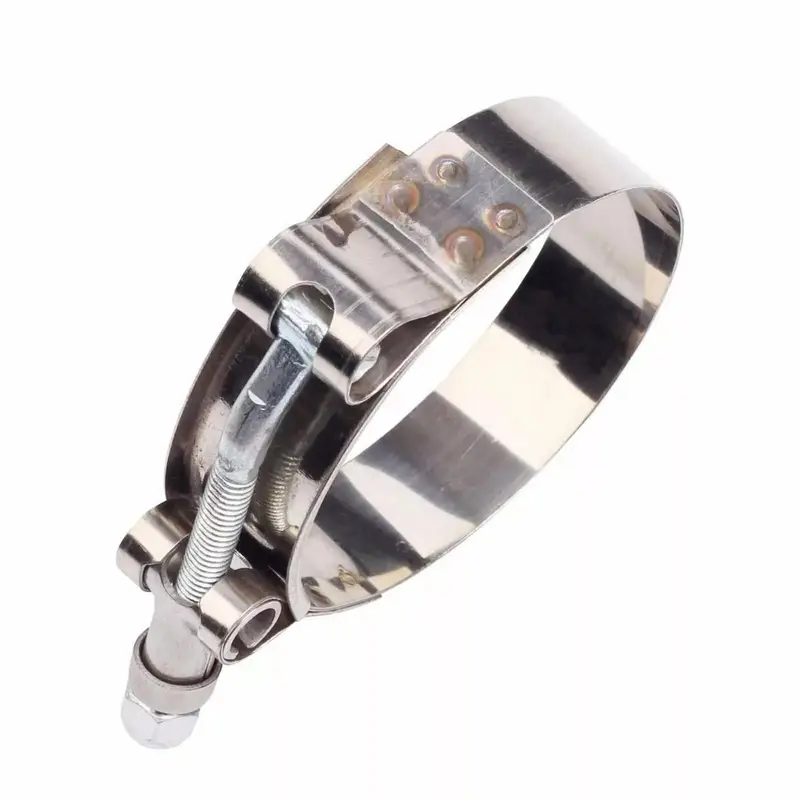

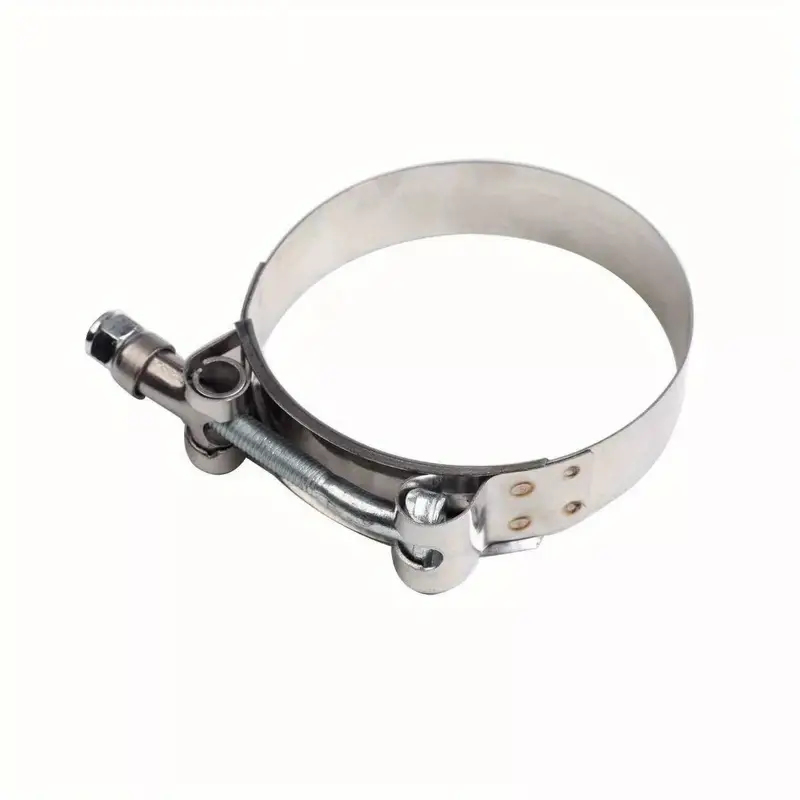

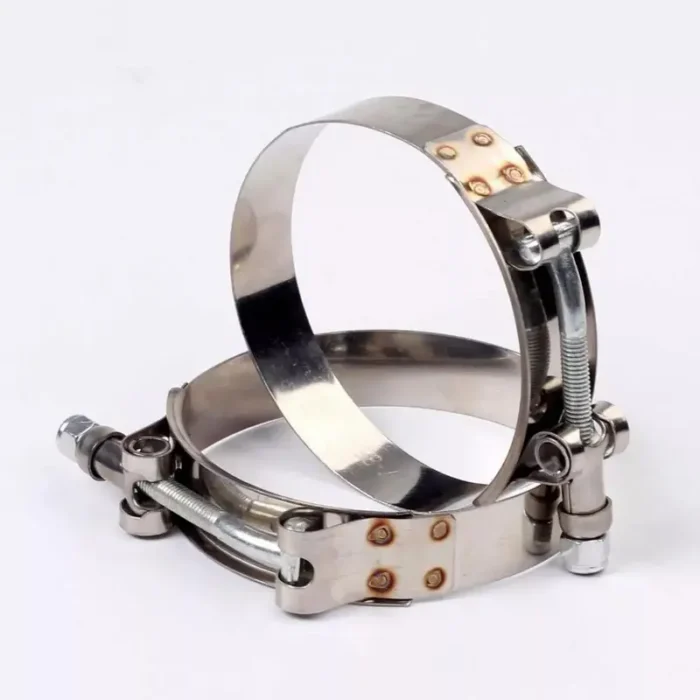

Seikou – Stainless Steel T-Bolt Clamp 44mm-51mm
Name: T-bolt clamp
Material: 301 stainless steel, nut: galvanized
Clamping range: 44 mm – 51 mm or 1.73″ – 2.01″
Band thickness: 0.6 mm
Bandwidth: 19 mm or 0.75 in
For ID 1 1/2″ or 38 mm silicone tubing
For OD 1.89″ or 48 mm silicone tubing
Description
Product material
Usually 301 or 304 stainless steel is used, which has good corrosion resistance and mechanical properties.
301 stainless steel: It has high strength and hardness, and can obtain better strength and wear resistance after cold processing.
304 stainless steel: It has stronger corrosion resistance and is suitable for various harsh environments, especially in places with moisture, acid, alkali and other corrosive media.
Product features
High-strength sealing: The T-bolt design enables the clamp to provide uniform sealing pressure when tightening, ensuring that the connection parts are tightly sealed and effectively preventing liquid or gas leakage. It is often used in automobiles, ships, industrial equipment and other fields with high requirements for sealing.
Adjustability: The clamping diameter can be adjusted within a certain range to adapt to the connection of pipes, hoses or other cylindrical objects of different sizes, saving the cost and time of selecting clamps of different specifications.
Durability: The stainless steel material makes it have good wear resistance and fatigue resistance, can withstand large tension and pressure, and is not easy to be damaged after long-term use.
Easy installation: The design of T-bolts and nuts makes the installation and removal process relatively simple, without the need for special tools, which is convenient and fast, and improves work efficiency.
Applicable scenarios
Automotive field: Used for the connection of pipelines such as the cooling system, intake system, and fuel system of automobile engines, such as the fixation of coolant hoses and intake hoses.
Industrial equipment: Widely used in the connection and sealing of various industrial pipelines and equipment, such as chemical pipelines, pharmaceutical equipment, food processing equipment, etc.
Shipbuilding: Various pipeline systems on ships, such as seawater cooling systems, fuel delivery systems, etc., are also often connected and fixed using this clamp
